3 Years Warranty IP65 24Hours Charging Time Battery For LED Light Waterproof LiFeP04 DC Ceiling Hanging Constant Power Emergency Output Back Up Driver
ContPerson : Claire Li
Numero di telefono : 86-15999718117
WhatsApp : +8615999718117
Quantità di ordine minimo : | 1 PCS | Prezzo : | USD |
---|---|---|---|
Imballaggi particolari : | Cartucce | Tempi di consegna : | 5-8 giorni lavorativi |
Termini di pagamento : | L/C, T/T, D/A, D/P, Western Union, MoneyGram | Capacità di alimentazione : | 10000 pezzi/mese |
Luogo di origine: | CINESE | Marca: | MF |
---|---|---|---|
Certificazione: | CE, RoHS | Numero di modello: | MF-EMUFO-XXW-170 |
Informazioni dettagliate |
|||
Voltaggio di ingresso universale: | 100-277VAC/347VAC 50/60Hz | Corrente di ingresso CA: | 200mamax |
---|---|---|---|
Potenza nominale introdotta: | 12w massimo | Voltaggio di uscita: | 170 |
Potenza di emergenza: | 25W/30W/40W | Tempo di ricarica: | 24 ore |
Tempo di scarico: | 90 minuti | Batteria: | Li-ione |
Temperatura ambiente: | 32 ~ 122 °F (0 ~ 50 °C) | Peso: | 5.10 libbre ((2.2kg) |
Evidenziare: | 25W LED Emergency Driver Emergency Kit,LiFePO4 Battery Back Up Emergency Kit,30W LED Emergency Driver Emergency Kit |
Descrizione di prodotto
descriptions:
self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge protection and short circuit protection
working environment: temp.: 0 to 60°C
IP65 standard
not suitable for high risk lighting environment
Accessories: integrated waterproof button and indicator light, remote control
3years warranty
Input voltage | 220-240Vac, 50/60Hz |
Input current | 0.003A Max. @230Vac |
Charging power:
|
5.0W max.
|
Power factor |
>0.5
|
Emergency output Voltage
|
DC100-260V,DC300V Max.
|
Emergency output Current:
|
58-150mA/ 75-200mA/115-300mA
|
Case temperature
|
to 60ºC Max.
|
IP Rating | IP 65 |
Warranty | 3 Years |
Battery Data | Li-ion 2.6Ah 7.4V |
Discharging time&Power | 5W 3H |
Order information
Emergency power | Emergency Time | Battery |
5W | 1.5H |
LiFeP04 1.5Ah 6.4V
|
8W | 1.5H |
Li-ion 2.5Ah 7.4V
|
12W | 1.5H |
LiFeP04 4.0Ah 6.4V
|
8W | 3H |
Li-ion 4.4Ah 7.4V
|
12W | 3H |
Li-ion 6.6Ah 7.4V
|
LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second

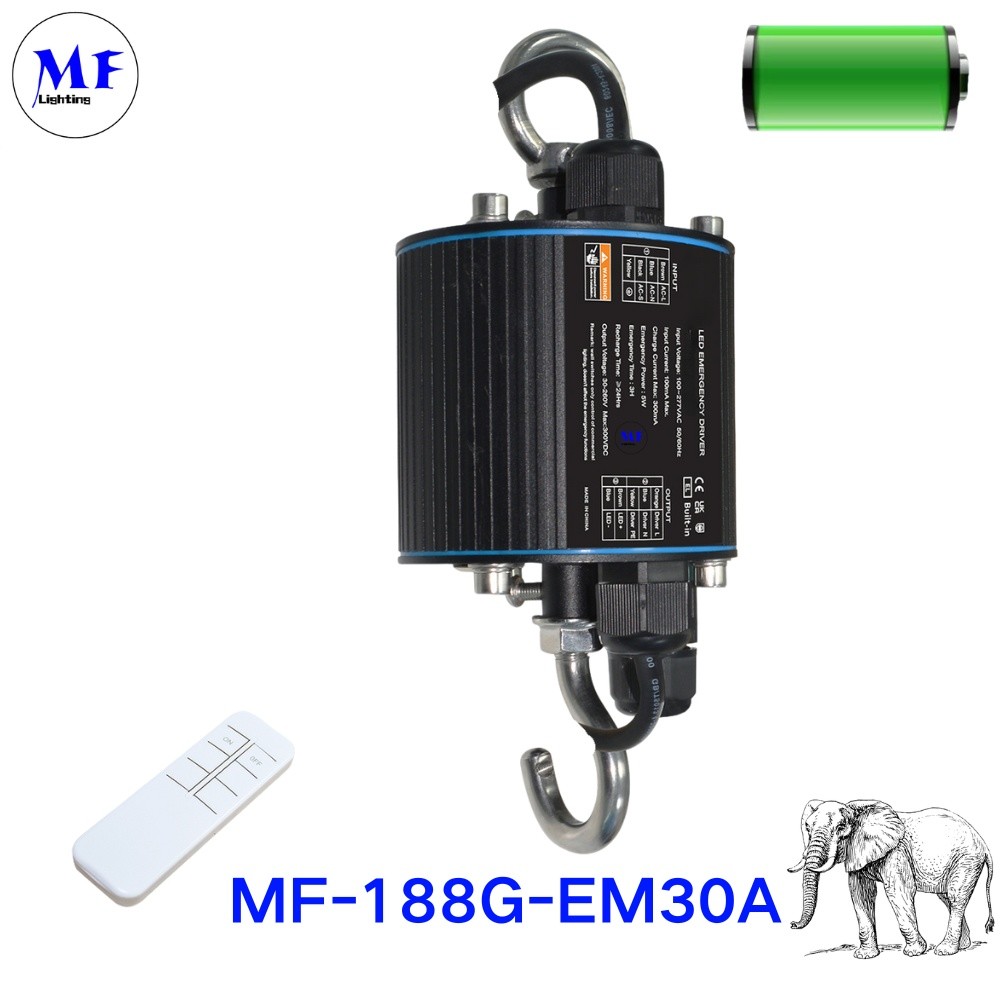

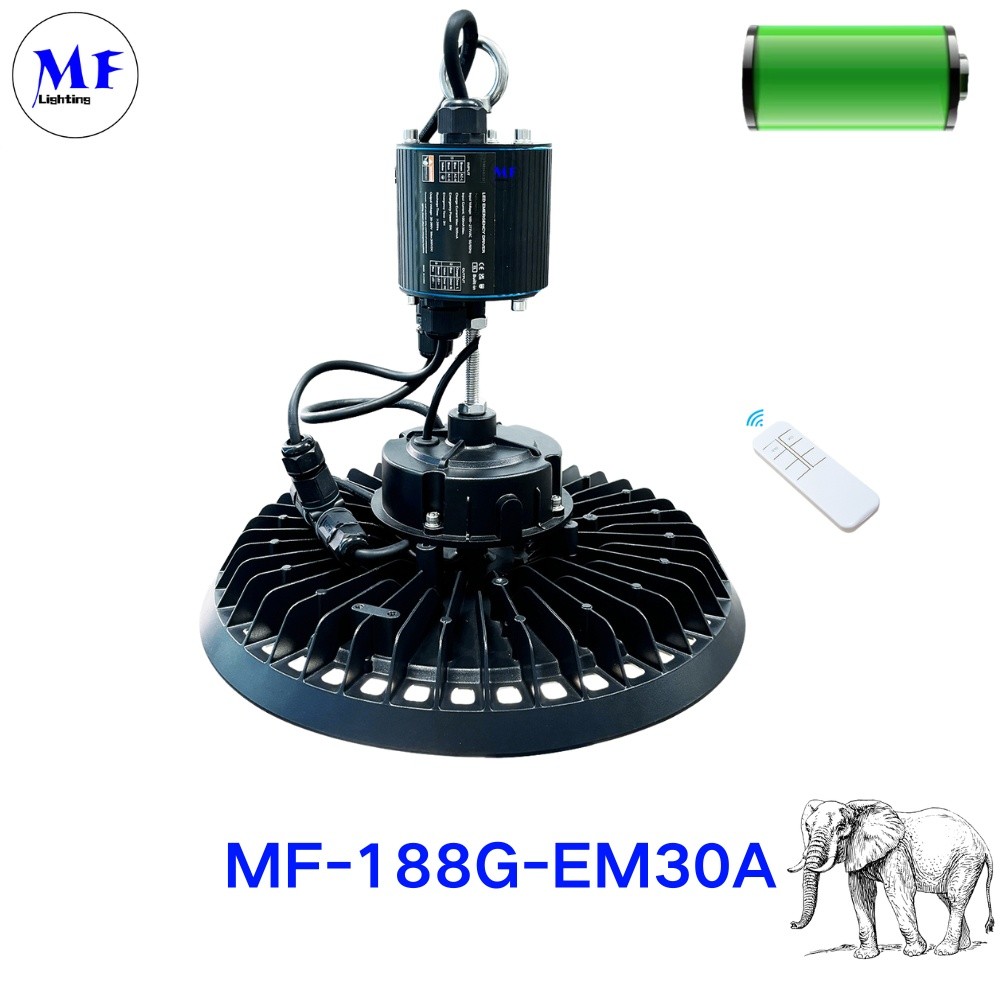

Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.
Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status

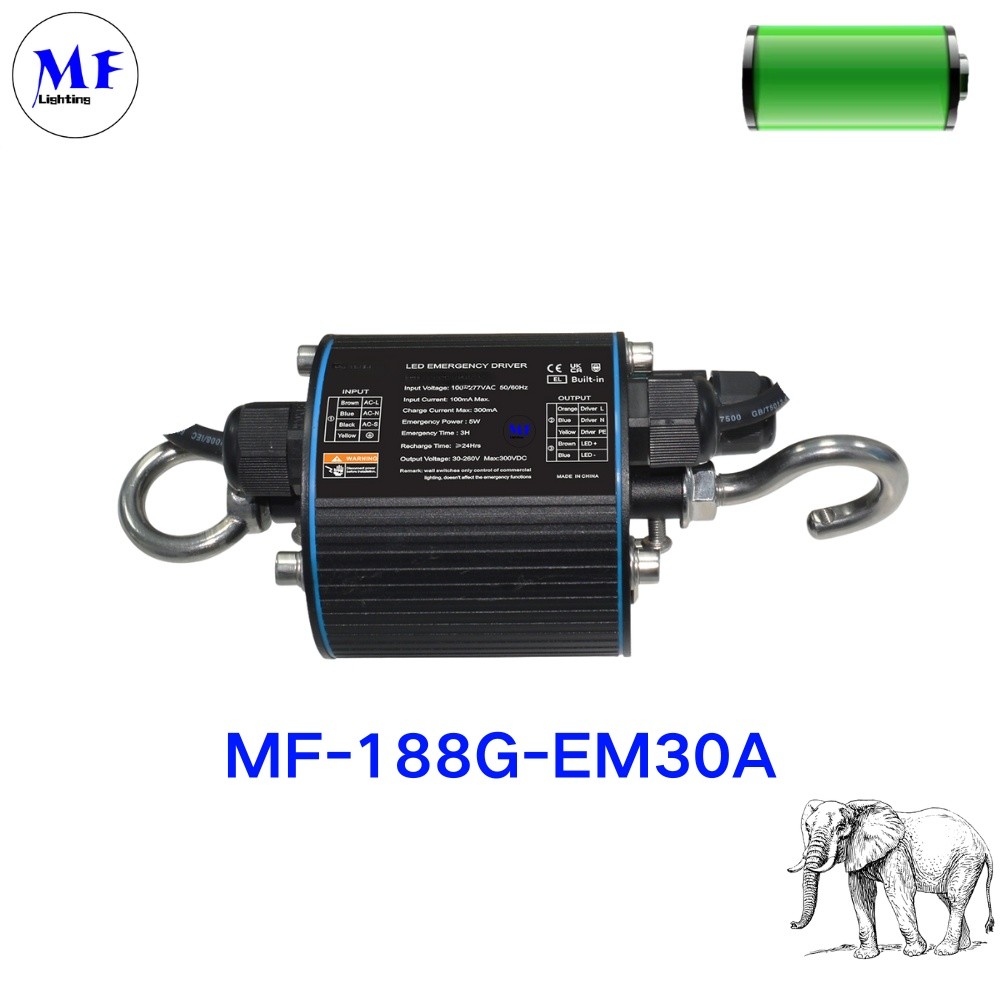

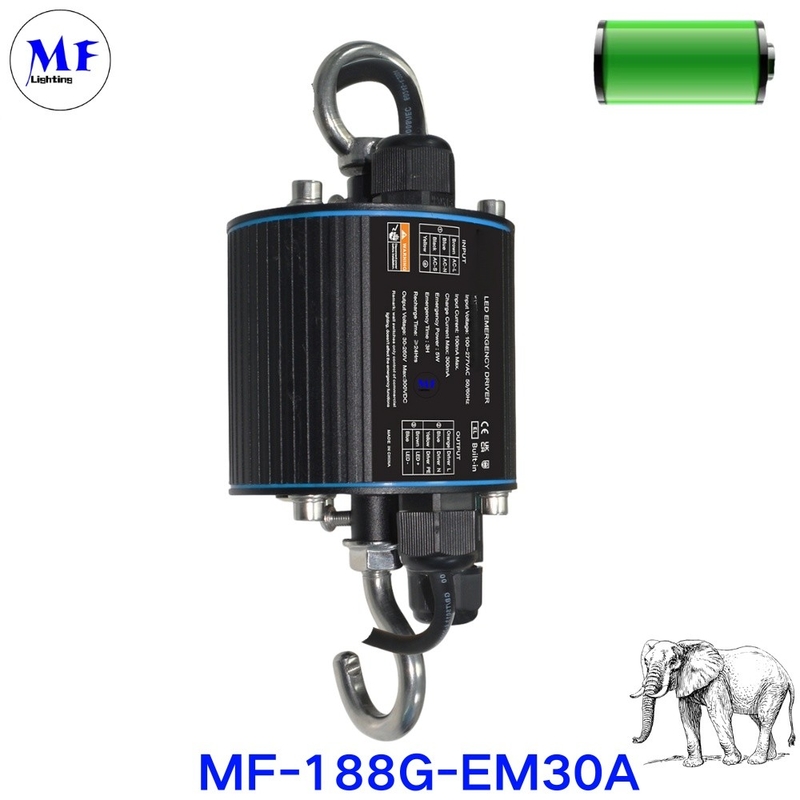

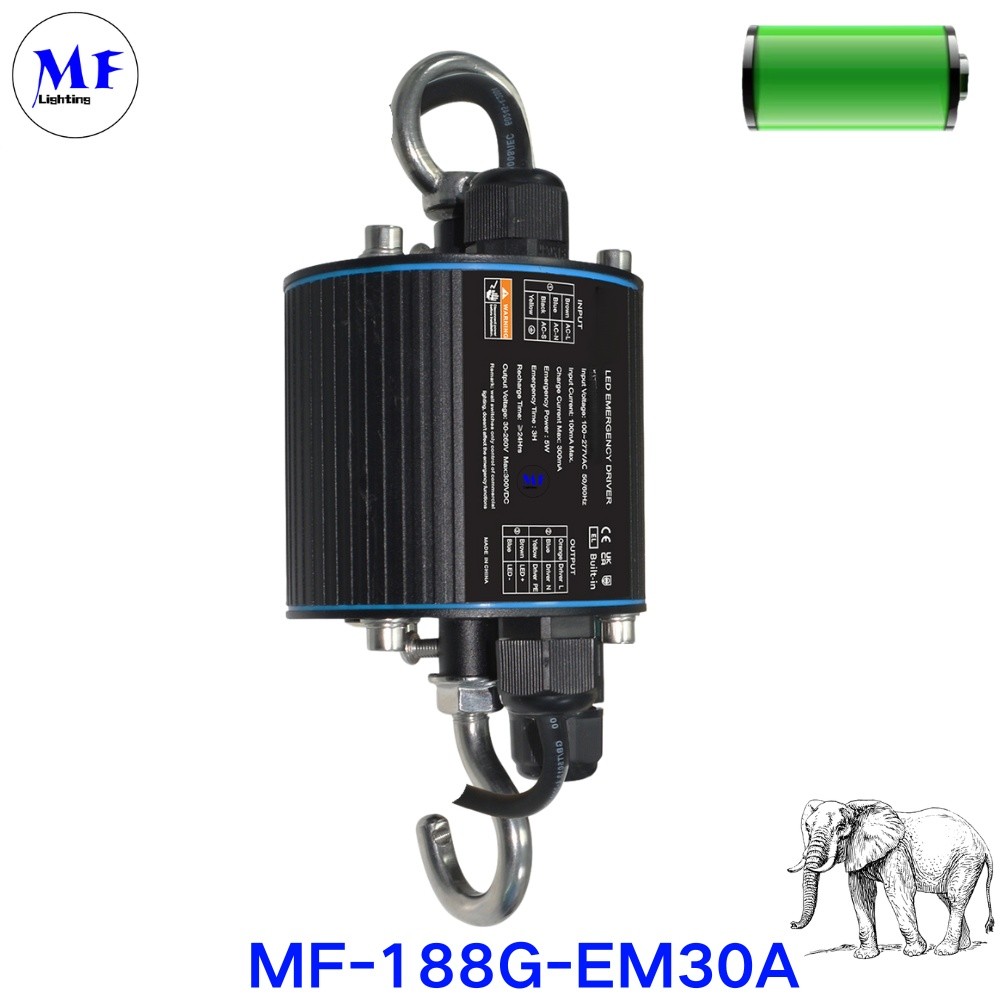

This product is a MF LED Emergency Driver MF - 188B with self - detection, constant - power emergency output, built - in battery and multi - protection functions. It suits for LED fitting with external LED driver.
The relevant application scenarios are as follows:

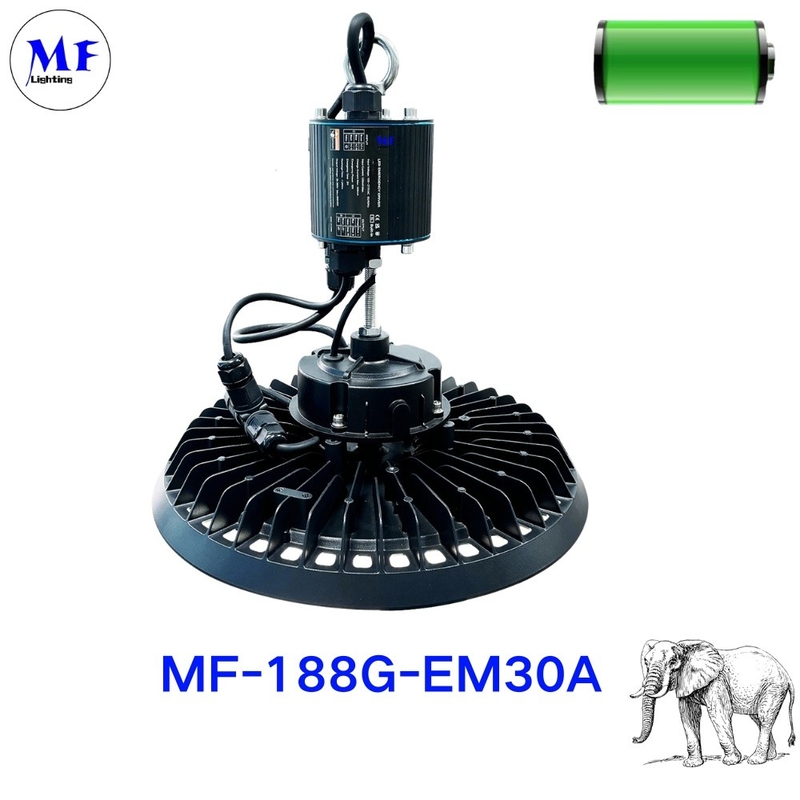

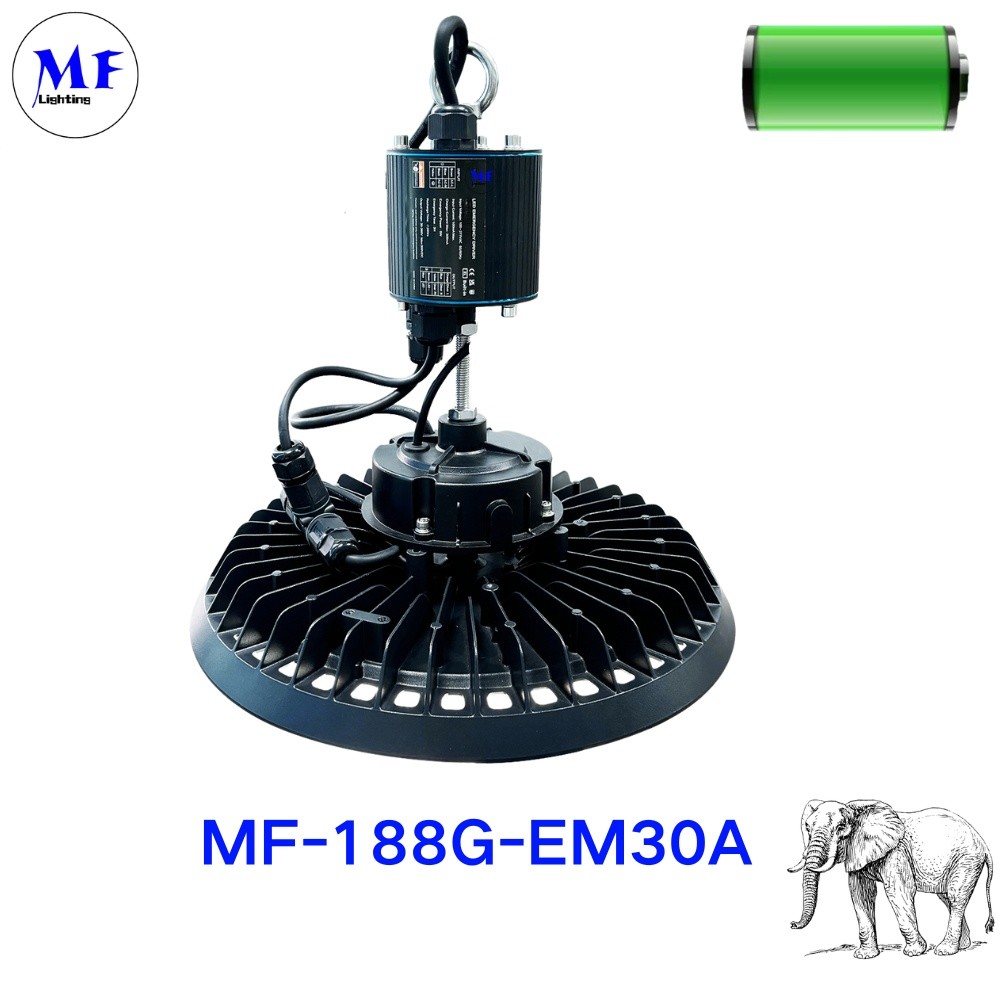

Emergency Lighting for LED Fixtures: When the power is off, it can provide emergency power for LED lights.
For example, in case of a power outage in buildings such as offices, homes, shops, and public facilities like schools and hospitals, the LED lights equipped with this emergency driver can still work, ensuring basic lighting needs are met.
