Casa ProdottiLuce a formaFactory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light
Contattaci

Informazioni dettagliate
Energia: 10 W Flusso luminoso: 300-350 mm
Angolo del fascio: 15-36° Accuratezza di colore: Ra≥97
Temperatura del colore: 2700K/3000K/4000K Tasso di distorsione: ≤0.6%
Diametro del radiatore: Ø38mm Peso: 0,36 kg
rotazione verticale: 90° Rotazione orizzontale: 355°
Valutazione dell'abbagliamento unificata: UGR<19 Conducibilità termica: 226W/mK
Diametro della lente: ¢38 mm Altezza del prodotto: H178,5 mm
Tracciare i cavi: 4 fili
Evidenziare:

10W LED shapeable track light

,

300-350lm contour spotlight

,

zoom 15-36° commercial track lighting

Descrizione di prodotto

Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 0

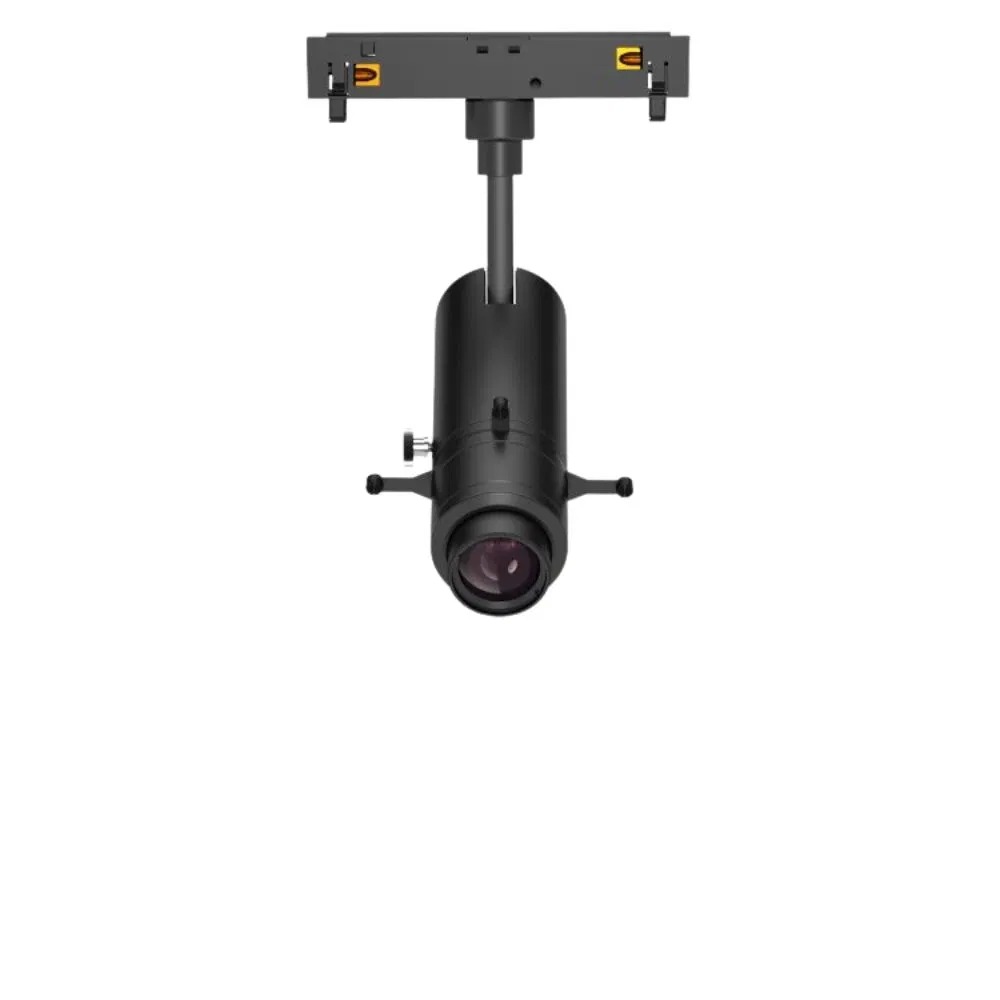

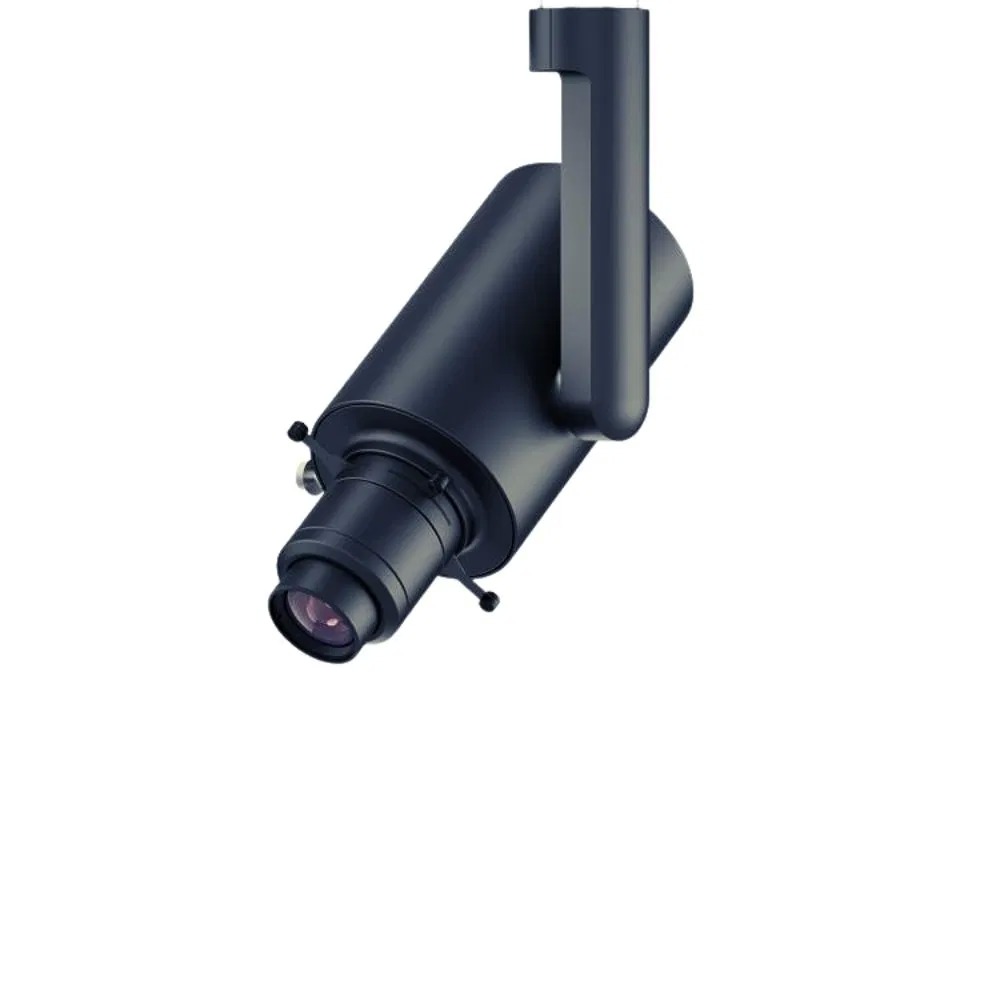

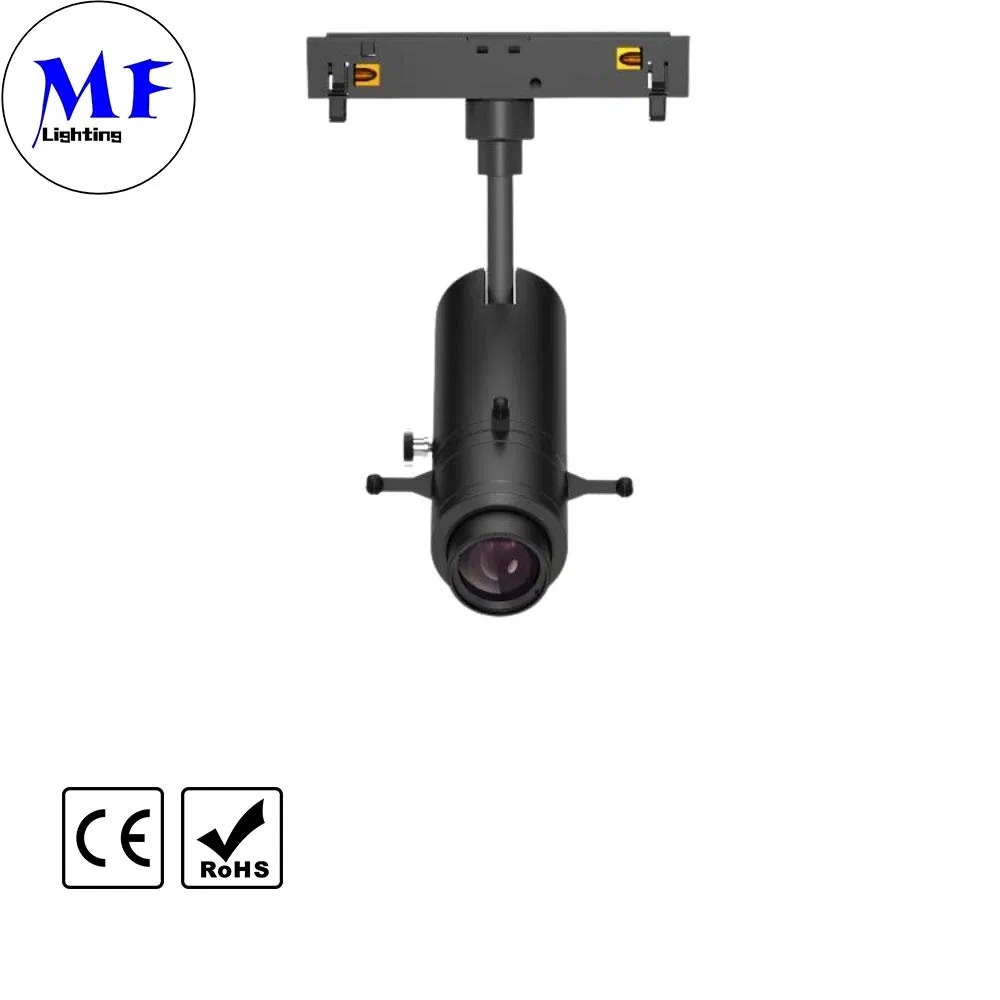

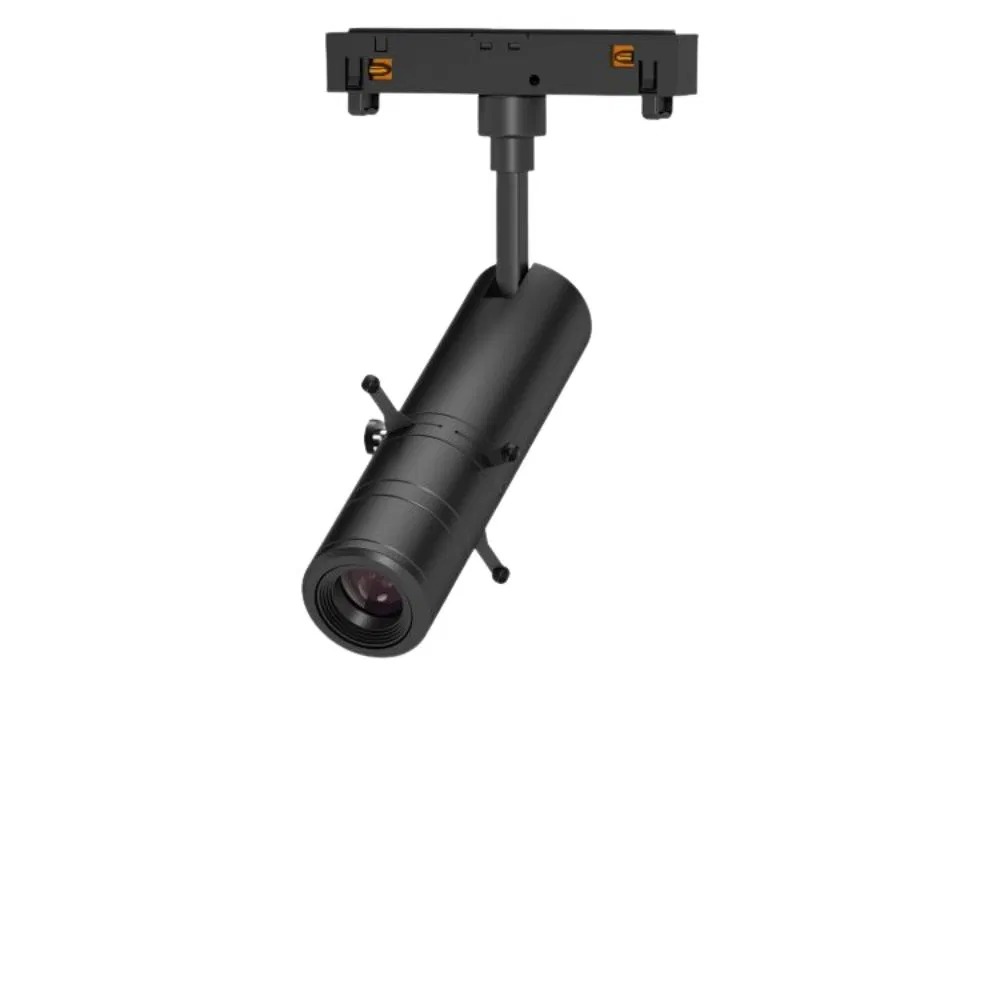

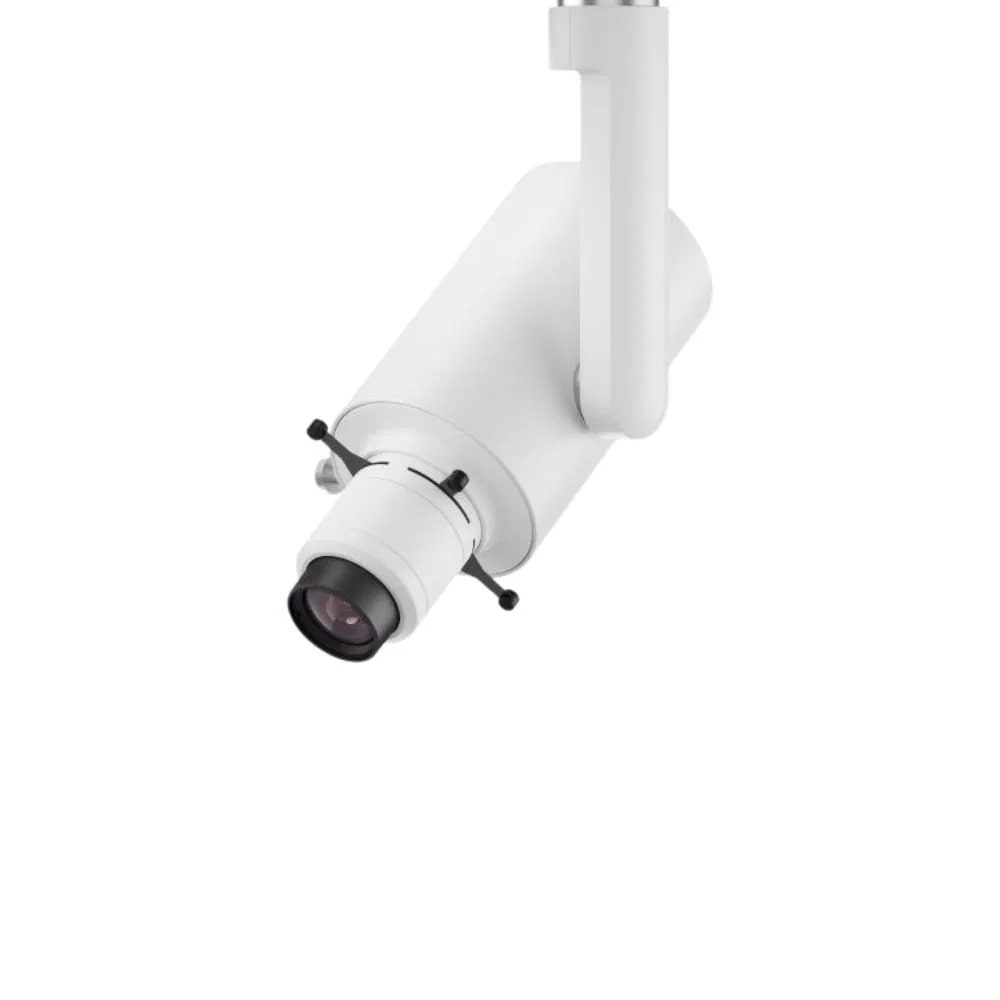

The T1003K-3836B is a 10W LED contour spotlight from Kingfisher 2 series featuring a 15°-36° zoom lens for ultra-high-definition projection with ≤0.6% TV distortion. It delivers 300-350LM output with Ra≥97 color accuracy and supports 2700K/3000K/4000K CCT options. The compact magnetic design (Ø38mm radiator, 0.36Kg) enables 90° vertical and 355° horizontal rotation for precise positioning. Compatible with smart controls (DALI, Zigbee, Bluetooth), it's ideal for museums, retail displays, and architectural lighting, offering millimeter-level spot shaping with 11-lens optics for uniform illumination. The anti-glare design (UGR<19) ensures comfortable viewing in premium commercial applications.
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 1 Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 2 Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 3
Item no.T1003K - 3836B
Power10W
Luminous Flux (3000K)300-350LM
Beam Angle (Lens Model)Zoom 15-36° (3836B)
Ra97
Color of housingBlack, White
Dimension (mm)¢38*H178.5 (¢38 lens)
Track type4 wires
Key Features
  • Variable Zoom Optics (15°-36°) - Adjustable beam angle provides versatile lighting control from spot to flood
  • High-Precision Projection (≤0.6% Distortion) - Ultra-sharp imaging with minimal distortion for detailed projections
  • Professional Color Rendering (Ra≥97) - Exceptional color accuracy enhances artwork and retail displays
  • Smart Lighting Compatibility - Seamless integration with DALI, Zigbee, and Bluetooth systems
  • Flexible Rotation & Compact Design - 90° vertical and 355° horizontal tilt with magnetic mounting
  • Anti-Glare Performance (UGR<19) - Low unified glare rating ensures comfortable viewing
Technical Advantages
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 4
Cold Forging Integrated Radiator
Radiator made of 1070# pure aluminum with high thermal conductivity (226W/m.K), low-temperature differences, minimal light failure, and extended service life.
360° Manual Rotation Design
Loosen the manual screw to achieve 360° spot rotation adjustment, solving projection and light spot rotation requirements.
High-Definition Optical Lens
Multiple high-definition coated optical lenses provide high luminous efficiency, excellent spot uniformity, minimal distortion, and extensive linear zoom range with clean cut-off lines.
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 5
Optical-Grade Variable Aperture
High-precision special material diaphragm with no blurring or freezing. Manual insertion and removal of light cutting device freely changes spot shape.
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 6
Multi-Layer Dry Damping
Focusing device requires no lubricating oil, providing silky feel with stable, reliable, wear-resistant operation that maintains performance over extended use.
Enhanced Linear Zoom
Short stroke with considerable focal length, high short-focus and long-focus recognition, visible to naked eye, with enhanced linear zoom convenience.
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 7 Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 8 Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 9
Product Parameters
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 10
Applications
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 11 Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 12
Museum & Art Gallery Lighting - Perfect for highlighting artwork with precise, high-CRI illumination
Retail & Luxury Displays - Ideal for accent lighting in boutiques with sharp, adjustable beams
Hotel & Restaurant Ambiance - Enhances interior design with warm-to-neutral white tuning
Architectural & Event Lighting - Used for dynamic gobo projections and framing architectural features
Home Decorative Lighting - Adds high-end touch to residential spaces for wall-washing and artwork illumination
Machine Vision & Studio Lighting - Delivers distortion-free, uniform light for precision applications
Packaging & Shipping
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 13
Certifications
Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light 14
Frequently Asked Questions
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
