Explosion Proof 10W Emergency Exit Light For Industrial Zones Mining Areas

Quantità di ordine minimo : 1 PCS Prezzo : USD
Imballaggi particolari : Cartucce Tempi di consegna : 5-8 giorni lavorativi
Termini di pagamento : L/C, T/T, D/A, D/P, Western Union, MoneyGram Capacità di alimentazione : 10000 pezzi/mese
Luogo di origine: Cina Marca: MF
Certificazione: CE, RoHS Numero di modello: MF-S230

Informazioni dettagliate

Tipo di LED: CREE Alimentazione: Conduttore certificato IEC
Efficacia del sistema: 110lm/w Angolo del raggio: 90°
CRI: Ra80 lenti: Chiara/Negra
Sdcm: <5> Tempo di ricarica: 24 h
tempo di scarico: 3 ore Efficienza energetica: > 90%
Materiale del dispositivo: Metallo+Alu+Vitro Cavo: 3 x 0,75 mm
Durata della vita: 10 anni a 12 ore/giorno Batteria: Batteria al litio 1.2V800mAh
Voltaggio: 100~240VAC 50~60Hz
Evidenziare:

10W Emergency Exit Light

,

Explosion Proof Emergency Exit Light

Descrizione di prodotto

Explosion Proof 2*5W Emergency Exit Light Cast Aluminum Emergency Bulb for Industrial Zones Mining Areas Chemical Plants Oil and Gas Facilities Hospital

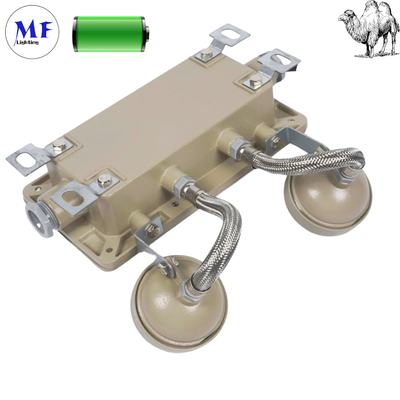

Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 0




Features:

1. Performance and Efficiency

Achieves a system efficacy of 110lm/W for high energy efficiency.

Features a power efficiency greater than 90%, contributing to energy savings.

Offers a lifespan of 10 years at 12 hours/day, minimizing long-term maintenance costs.

2. Design and Safety

Rated IP66 for excellent dust and water resistance.

Constructed with durable materials including metal, aluminum, and tempered glass.

Equipped with an IEC certified driver for reliable operation.

3. Flexibility and Convenience

Provides a beam angle of 90° for broad illumination.

Charges in 24 hours and has a discharge time of up to 3 hours,

Compact size of 260x60x215mm for easy installation in various settings.

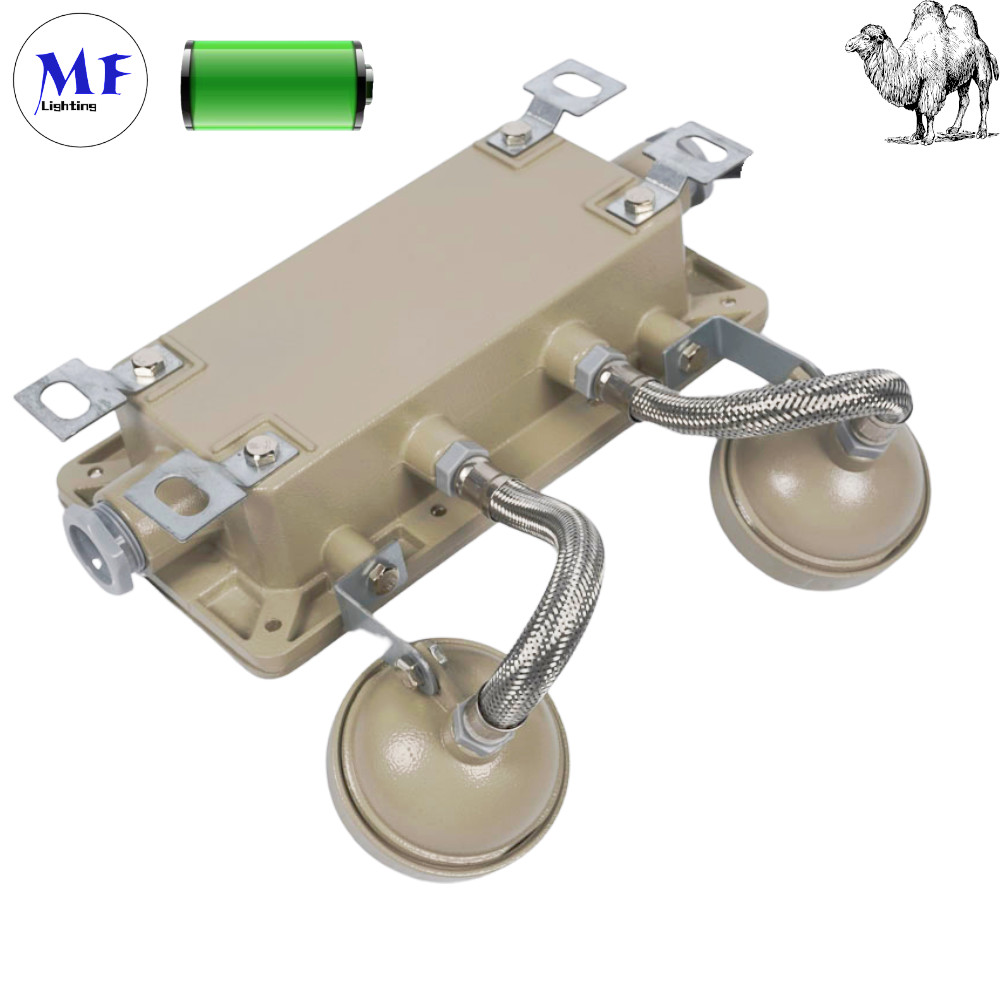

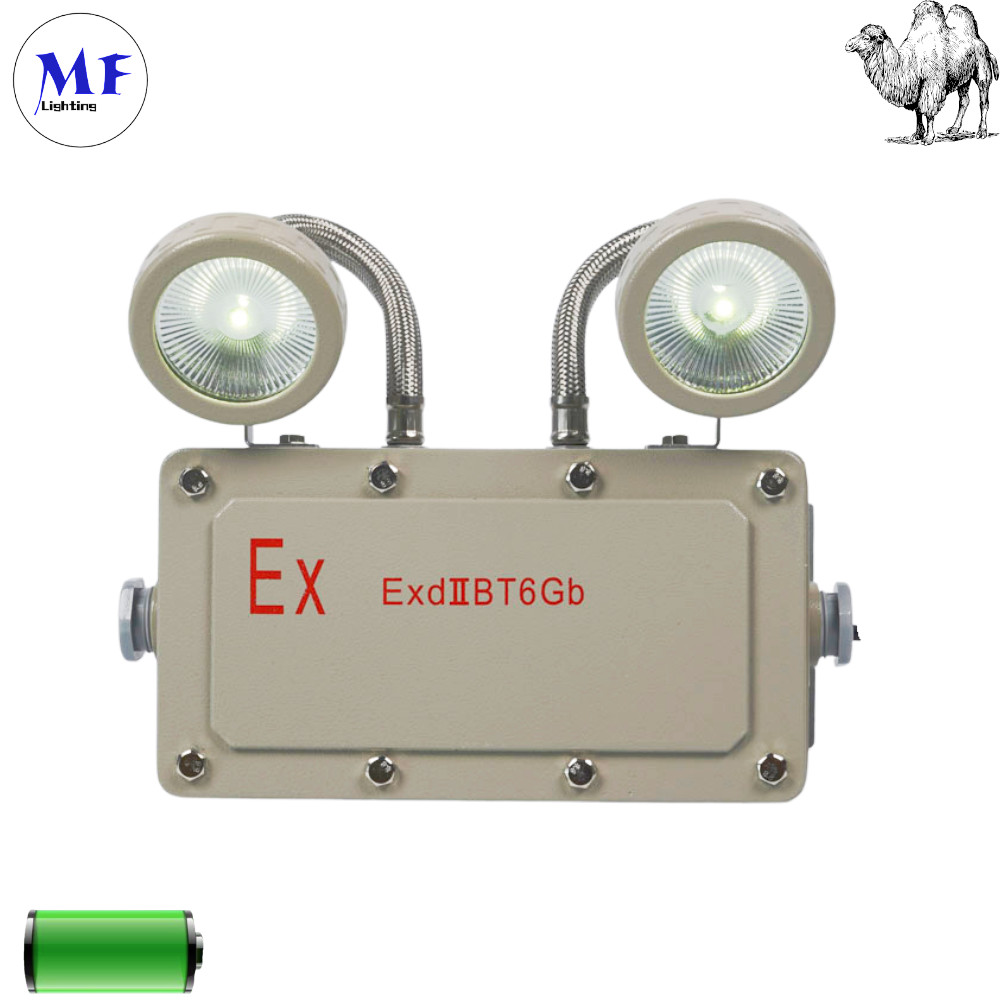

Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 1Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 2

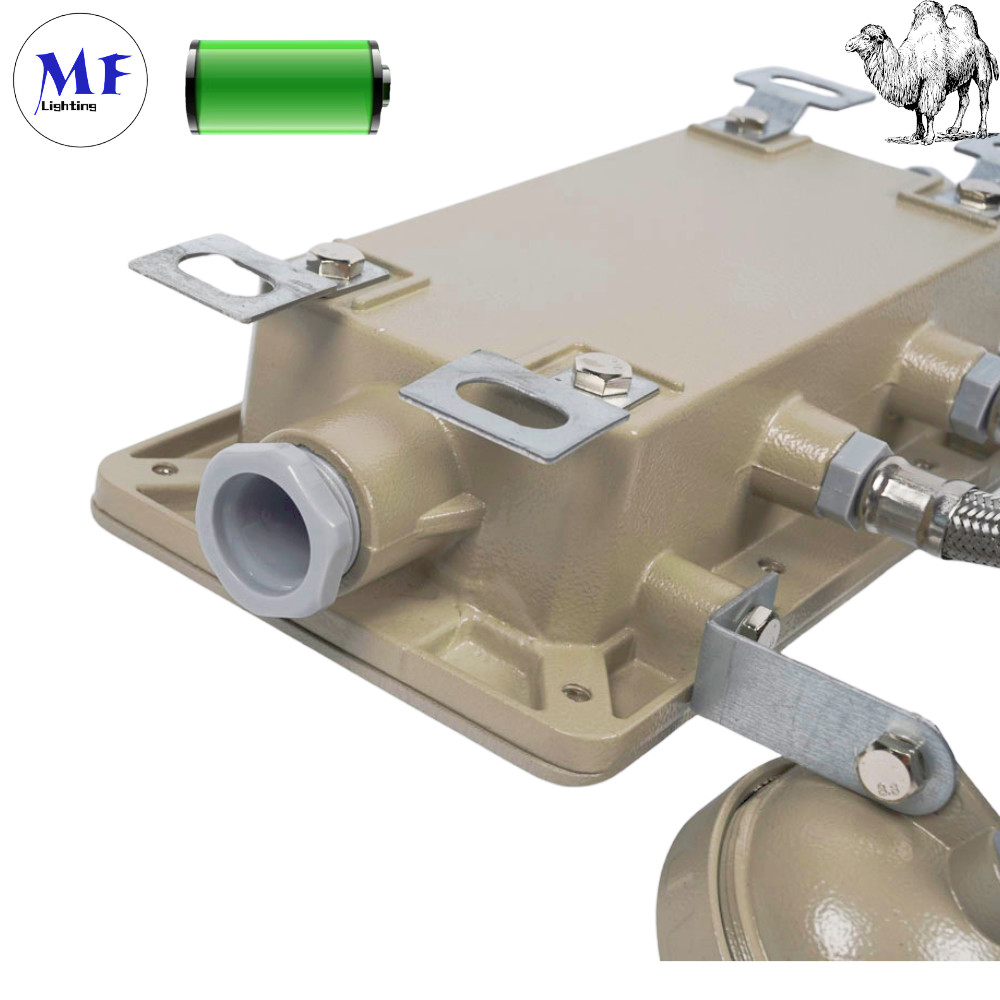

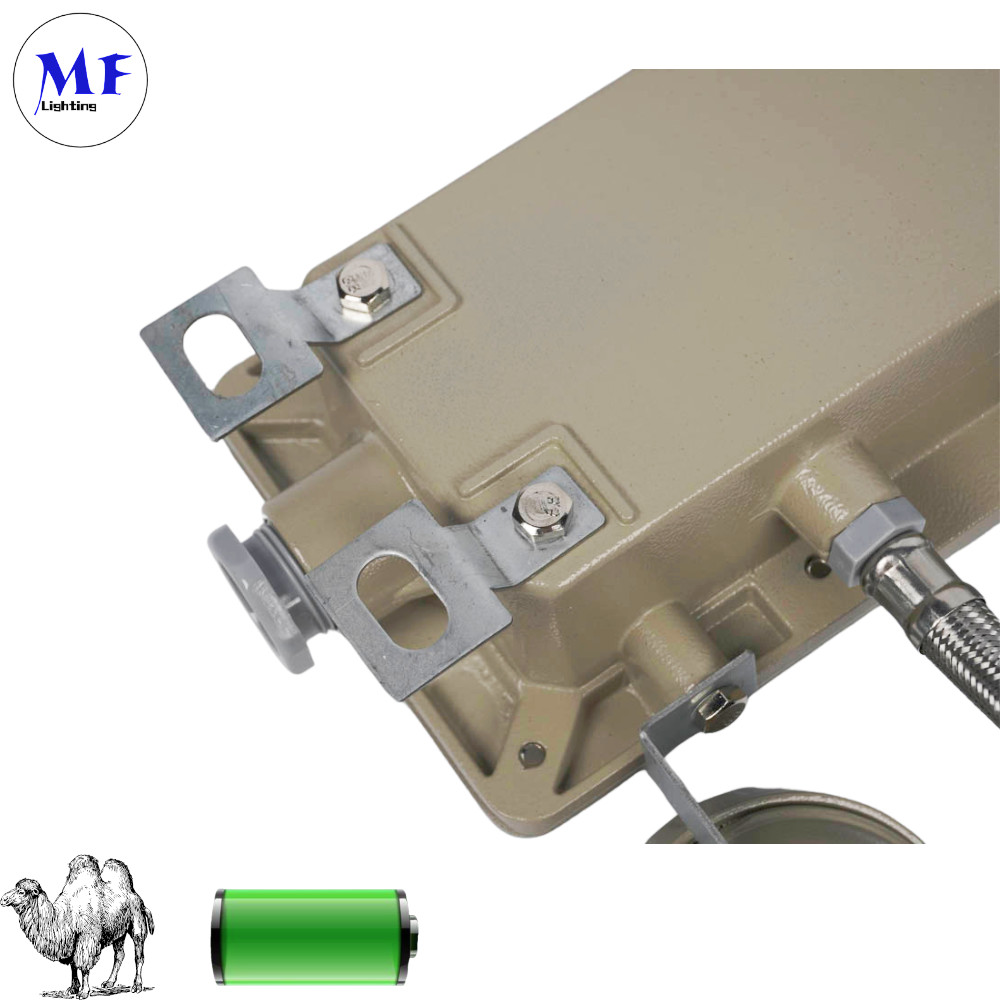

Aluminum one-piece die-casting
The material is solid, heavyand durable,and the heatdissipation effect is outstanding


Stainless Steel Waterproof HoseIt is suitable for various complexenvironments and the illuminatiorangle can be converted at will



Lighting Data Electrical Data
LED Type Cree CREE Power Supply IEC certified driver
System Efficacy 110lm/W Input Voltage 100~240V ac
System Power Consumption 2x5W Power Frequency 50~60Hz
CCT 6000K Charging Time 24 H
Beam Angle 90° Discharging Time 3H
CRI Ra80 Power Efficiency >90
Lens Clear/Mist Power Factor >0.90
SDCM <5 Battery Lithium Battery 1.2V800mAh
Material Data Packing Data
Fixture Material Metal +Alu.+Temple glass Junction Temperature(Tj) <70ºC(Ta=30°ºC)
Powder Coating AkzoNobel Storage Temperature -40~+80ºC
Cable 3x 0.75mm Operating Temperature -40~+60ºC
Ingress Protection IP66 Outlook Size(MM) 260×60×215
Life Span 10 years at 12 hours/day Export Carton Size 57x46x25.5CM/8pcs/10KG

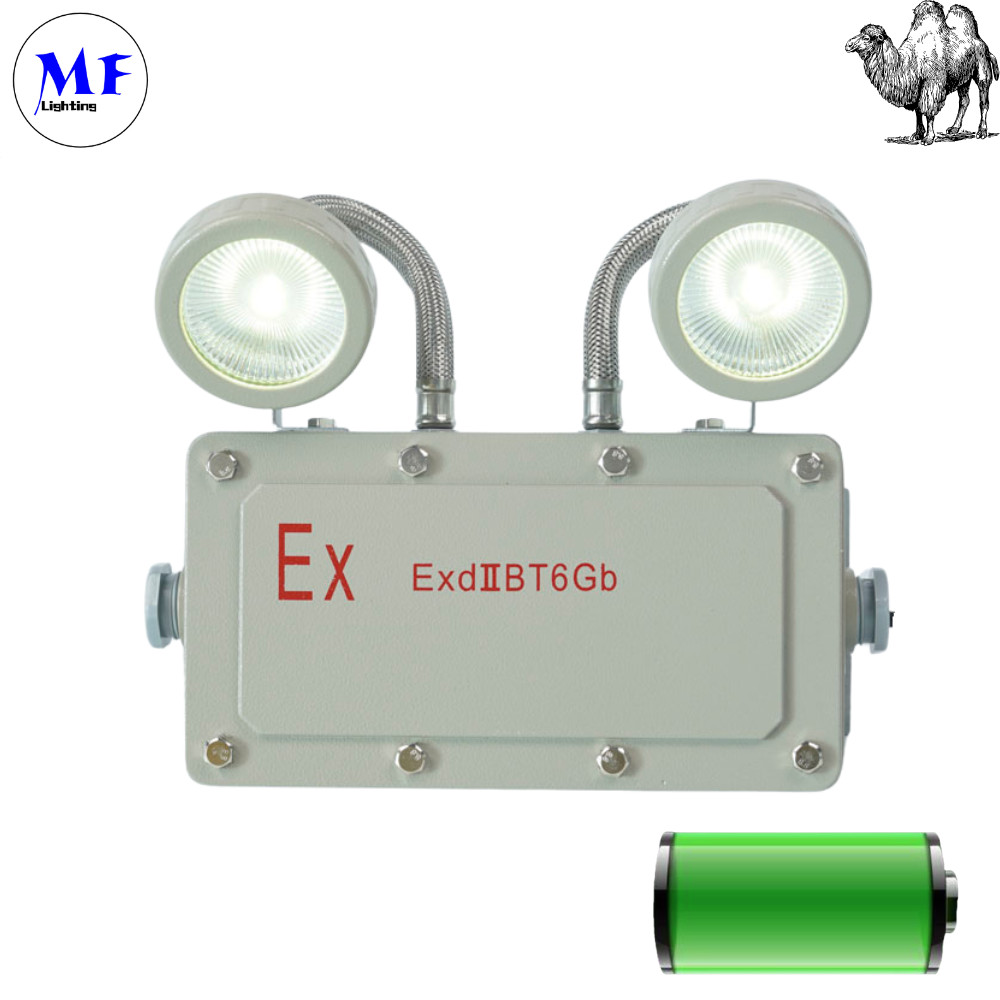

Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 3

Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 4 Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 5

Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 6



Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 7 Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 8

Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 9

Explosion-proof emergency light is a kind of emergency lighting and evacuation indication equipment specially designed for use in flammable and explosive environments, and its application is wide, covering multiple industries and fields



  • Commercial Buildings: Used in offices, malls, and retail spaces to provide illumination during power outages or emergencies.

  • Educational Institutions: Installed in schools, colleges, and universities for emergency lighting and evacuation guidance.

  • Healthcare Facilities: Utilized in hospitals, clinics, and medical centers to ensure continuous lighting in critical areas during emergencies.

  • Hospitality Industry: Found in hotels, resorts, and lodges to guide guests to safety exits in case of emergencies.

  • Public Transportation: Employed in buses, trains, subways, and airports for emergency lighting and passenger guidance.

  • Industrial Settings: Used in warehouses, factories, and manufacturing plants to facilitate safe evacuation during power failures or emergencies.

  • Entertainment Venues: Found in theaters, concert halls, and stadiums to provide emergency lighting for crowd management and evacuation



Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 10































Explosion Proof  10W Emergency Exit Light For Industrial Zones Mining Areas 11
